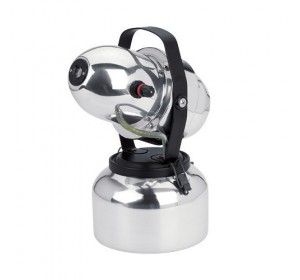

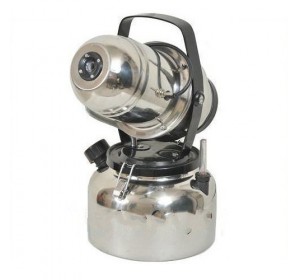

Wellton Healthcare 4Ltr Capacity SS Ulv Fogger Machine WH104
Features: -
·
Max. area coverage as compared to any other conventional fogger.
·
304 Grade Stainless Steel Body.
·
Chemical Level Indicator.
·
Comes with pre-fitted liquid flow control valve for ease of use.
·
100% Convenient, Portable & Easy to use.
·
Supplied with Manual Timer Extension for time interval adjustment for
operation , after a fix interval of schedule time it will automatically off.
Specifications-
·
Body & Tank : 304 Grade Stainless Steel
·
Tank Capacity : 4 Litre of Chemical Storage
·
Blower Motor : >26000 RPM Motor
·
Nozzle : 1 Counter Rotating Vortex Nozzle
·
Chemicals : Can atomize both oil-based and water-based liquids.
·
Control Valve : One turn. Brass Valve
·
Particle Size : 0.5-30 µ, adjustable. Viscosity and density can affect
particle size.
·
Range : Visible fog, 20-40 ft Input : 230V 50Hz Single Phase
AC Supply
·
Dimensions : [ 33 x 41 x 23.5 cm ] L x H x Dia
·
Net. Weight : 4.60 Kg ( Approx.)
Description-
It can deliver up to
150 ml/min in a mist of large (30 micron) drop- lets used in humidification,
dust abatement and sanitizing work. The advanced Micro Fogger can apply either
oil- or water-based chemicals. And it’s easy to calibrate when changing
liquids.
This machine atomizes liquid into a fog, mist or spray of small droplets, It
can atomize both water or oil based solutions as well as emulsions and dilute
suspensions of wettable powders.
Typical Uses Of
Fogging Machine Includes :-
• Humidification
(Fogging Water)
• Odour Control
(Fogging odour Neutralizers, Scents or Masking chemicals)
• Applications
Of Insecticides
• Application Of
Germicides or Sanitizing Chemicals For Cleaning & Sanitation Purposes
• Control Of mold and
mildew ( Applying Sporicides, Fungicides or anti-mildew Chemicals )
This fogger atomize liquid into small droplets by shearing them in high turbulent section of nozzle. A low rate [30-60 ml per minute] produces a dry fog of small droplets that float extensively and diffuse widely. Larger flow rate [120-150 ml per minute] produce progressively larger droplets. Liquid flow rate is regulated by a control valve to alternate the droplet size.
HOW TO USE
1. Add chemical
solution to the liquid tank.
2. Plug the fogger
power cord into a grounded power outlet.
3. Using the
calibrated flow rate and dosage instructions provided by the chemical
manufacturer, calculate the time required to properly fog the area.
4. Adjust the
angle of the fogger power head for the space you are treating (point the nozzle
slightly up for max distance)
5. Aim the fog output
towards area requiring treatment. For space fogging select the direction of
greatest clearance so fog droplets can fill the space (droplets that hit
something will condense).
6. Confirm the
flow control valve is set to desired setting, and turn on the fogger.
CLEANING THE FOGGER
A) Normal
Cleanup: When Fogging is complete, remove the suction tube from the liquid
source and operate the fogger for one minute with valve full open. This will
expel any liquid remaining in the fogger's internal lines. Transfer excess
chemical from tank to an appropriate container .
B) Cleanup of
Difficult Liquids: After fogging a viscous liquid, emulsion or a solid
suspension, begin with a normal cleanup (Step A). Then put suction tube into an
appropriate solvent for your fogging chemical (water for water-dispersible
liquid, kerosene for oil based liquids) and operate for 1-2 minutes flushing
residual chemicals with clean solvents. Then again repeat Step A.
C) Cleanup for Long
Term Storage: Remove all the liquid from the tank to eliminate the potential
for long term chemical attack on tank, suction tube or tubing. Then follow Step
A or B.
WARRANTY DETAILS
One Year Warranty.
